 TB5系列－TB551/TB556/TB557/TB561/TB562/TB564/TB567
1、多种安装方式：旋入插入式、卡锁式、在线插拔式
2、球泡电极、扁平式电极、低温电极、铂电极、抗HF电
极等可选
3、Next StepTM固态参考，消除中毒、抽吸及堵塞
4、在恶劣工况下pH测量的应用
5、复合式电极，紧凑布置
6、AdvantageTM系列可选（具有溶液接地棒），允许连续
传感器诊断
7、整体封装电缆，没有过程内的高阻抗连接
8、140℃ （284℉）- 市场上最高的玻璃温度极限；17 巴 （250 psi）或更高- 市场上最高的压力极限
9、电缆接线盒选项，适用于较长电缆长度
|
TB(X)551 |
TB(X)556 |
TB(X)557 |
 |
>>read more |
>>read more |
>>read more |
|
 |
 |
 |
| Body Type |
- Immersion
- Quick Insertion |
- Immersion
- Screw-in Insertion |
- Standard Pressure Retractable |
| Junction |
PTFE or Wood |
PTFE or Wood |
PTFE or Wood |
| Glass Type |
Bulb / Flat |
Bulb / Flat |
Bulb / Flat |
| Reference Type |
Encapsulated Salt Matrix |
Encapsulated Salt Matrix |
Encapsulated Salt Matrix |
| Body Material |
PPS |
PVDF |
- PVDF
- 316 SS
- Titanium |
| Process Connection |
1 in. NPT |
? in. NPT |
Via ball valve (1? or 1? in. NPT) |
| Maximum Temperature |
140°C (284 °F) |
140°C (284 °F) |
140°C (284 °F) |
| Maximum Pressure |
6.9 bar (100 psi) |
6.9 bar (100 psi) |
6.9 bar (100 psi) |
|
TB(X)561 |
TB(X)564 |
TB(X)567 |
TBX587 |
|
>>read more |
>>read more |
>>read more |
>>read more |
|
 |
 |
 |
 |
| Body Type |
- Insertion
- Retractable with TB18 |
High Pressure Retractable |
Screw-in Insertion |

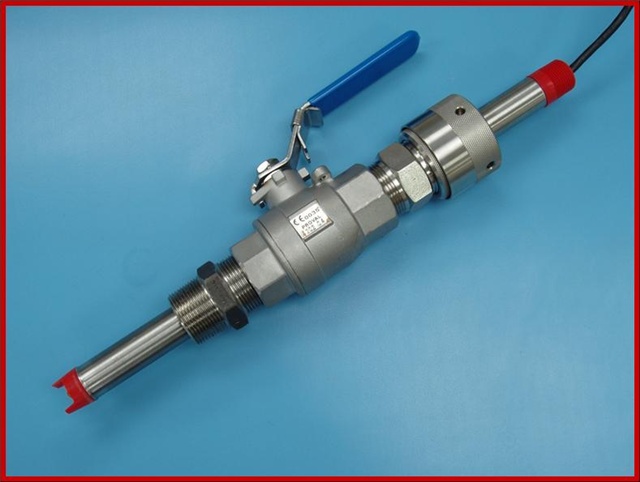

Hot Tap, Ball Valve Iinsertion |
| Junction |
PTFE or Wood |
PTFE or Wood |
PTFE or Wood |
PTFE or Wood |
| Glass Type |
Bulb / Flat |
Bulb / Flat |
Bulb / Flat |
Bulb / Flat |
| Reference Type |
Encapsulated Salt Matrix |
Encapsulated Salt Matrix |
Encapsulated Salt Matrix |
Encapsulated Salt Matrix |
| Body Material |
PVDF |
PVDF, 316 SS |
PVDF, 316 SS |
PVDF |
| Process Connection |
25mm |
Via ball valve (1? in. NPT) |
1 in. NPT |
1 in. NPT |
| Maximum Temperature |
140°C (284 °F) |
140°C (284 °F) |
140°C (284 °F) |
140°C (284 °F) |
| Maximum Pressure |
6.9 bar (100 psi) |
20.7 bar (300 psi) |
17.2 bar (250 psi) |
10.3 bar (150 psi) |
AP100系列－AP101/ AP102/ AP103/ AP104
1、多种安装方式：流通式、浸入式、旋入插入、潜水式
2、ABB独有的卡套式安装方式，保证密封的同时，保证
了安装时只需要旋转很小的角度.
3、螺纹式电极方便直接旋入管道安装
4、可选用管路适配器来实现旋入管道的卡套式安装
5、复合电极、整体丢弃式，方便更换
6、可更换参比液接和参比液，延长电极寿命
7、普通、高温、低温电极可选
8、快速电缆接头，方便插拔，避免电缆缠绕
9、保护凸柱，避免球泡损坏
10、自清洗选项
11、铂（ORP）电极可选项
AP200系列－AP201/ AP202/ AP203/
1、多种安装方式：流通式、浸入式、旋入插入式
2、普通、低温、高温电极可选
3、可选的空气及清洗液自清洗
4、可更换复合测量电极，节约维护及运行成本
5、多种插入深度可选
6、可调固定法兰深度，可对插入深度精确定位
7、BNC快速电缆接头，方便插拔
8、铂（ORP）电极可选项
AP300系列－AP301/AP302/AP303/AP304/AP305
1、多种安装方式：旋入插入式、卡锁式
2、球泡电极、扁平式电极、低温电极、铂电极可选
3、凝胶式双液接参比电极
4、可实现在线插拔，在过程工业上对TB5系列的替代
5、电缆接线盒选项，适用于较长电缆长度
6、在OEM、废水、造纸等行业的典型运用
7、低廉的电极价格
|
AP100 |
AP200 |
AP300 |
|
>>read more |
>>read more |
>>read more |
|
 |
 |
 |
| Body Type |
- Immersion
- Flow-through
- Screw-in Insertion
- Bayonet Insertion |
- Immersion
- Flow-through
- Screw-in Insertion |
- Immersion
- Bayonet Insertion
- Screw-in Insertion
- Hot-tap Retractable |
| Temperature Sensor |
Pt100 |
Pt100 |
Pt100/B3k |
| Glass Type |
Bulb |
Bulb |
Bulb/Flat* |
| Junction |
PTFE |
PTFE |
PTFE |
| Reference Type |
Slurry |
Solid Polymer |
Gel |
| Body Material |
PP |
PP, PPS and 316SS |
PPS, PVDF and 316SS |
| Process Connection |
- Bayonet
- ?, 3/8 or 1 inch
- Dip tube |
- 1 or 1? inch Thread
- DN25 Socket
- Dip Flange |
- ? or 1 inch Thread
- Via ball valve 1? inch |
| Maximum Temperature |
100°C (212°F) |
130°C (266 °F) |
105°C (221 °F) |
| Maximum Pressure |
6.9 Bar (100 psi) |
6 Bar (87 psi) |
6 Bar (87 psi) |
|
|
|
* Self-cleaning |
7600系列 －7651/7652/7654/7655/7656/7660
1、多种安装方式：旋入插入式、法兰式、浸入式、流通式
2、高纯水电极、工业电极、铂(ORP）电极、耐HF电极可选
3、测量电极、参比电极、温度电极分体布置，可单独更换，可更换参比电极液接和填充液，减少维护运行成本
4、大容量的参比液储存，减少维护量
5、可拆卸电缆，方便维护
6、可选的毛刷自动清洗技术
7、7660的流动参比技术，适用于高纯水的pH测量
8、7660的金属流通池，适用于高纯水的pH测量
|
2867 |
7600 |
|
>>read more |
>>read more |
|
 |
 |
| Body Type |
Immersion |
- Immersion
- Flow-Through |
| Temperature Sensor |
-- |
Pt100 |
| Junction |
Ceramic |
PTFE |
| Reference Type |
Flowing Junction |
Flowing Junction |
| Body Material |
ABS |
PP |
| Process Connection |
Dip Flange |
- ?, 1 and 3/8 inch Thread
- Dip Clamp |
| Maximum Temperature |
70°C (158 °F) |
100°C (212 °F) |
| Maximum Pressure |
-- |
6 bar (87 psi) | |
